Model 500 Specifications

  • 500 tons at 5,000 psi
    		•
  • For pipe 2 3/8" up to 36"
    		•
  • Weight: 500 13 3/8" 15,329 lbs, Weight: 500 36" 31,016 lbs
    		•
  • 4" API tapered bowls
    		•
  • Height: 8'
    		•
  • Footprint: 46"
    		•
  • 60" stroke
    		•
  • 2 speeds on most models
    		•
  • Wellhead adapter plate can be drilled and tapped to fit almost any flange
    		•
    Casinjac Model 500 casing jack mounted on flange in cellar. This jack is rated at 1,000,000 lbs. and was holding 880,000 lbs. when the photo was taken.

    Casinjac Model 500 casing jack mounted on flange in cellar. This jack is rated at 1,000,000 lbs. and was holding 880,000 lbs. when the photo was taken.

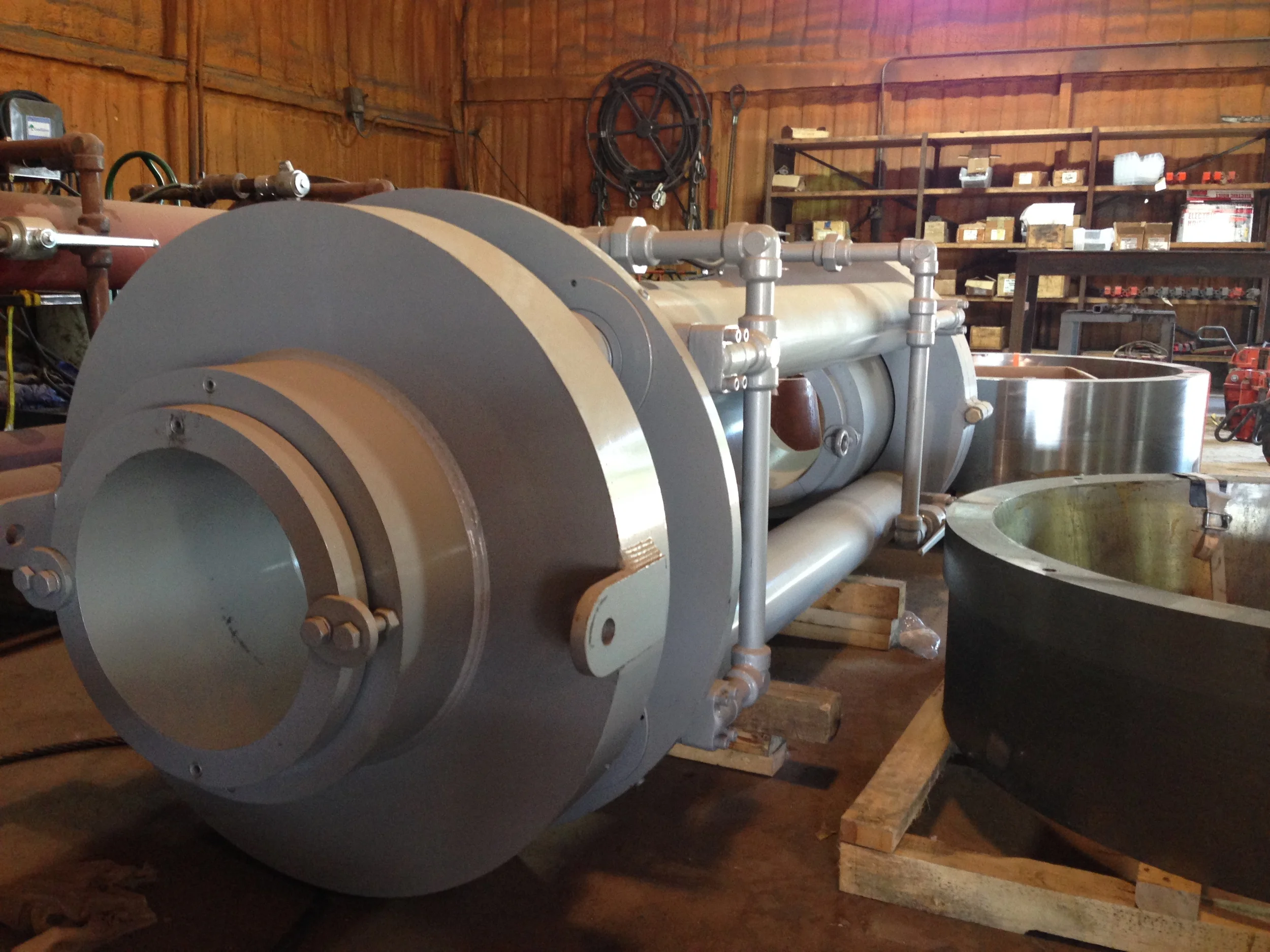

    The Casinjac 500 is a popular jack model for customers needing the ultimate in pulling capability. We can build a Model 500 that will accommodate up to 36" casing. These units have found widespread use in off shore applications. The 500 pulls up to 1,000,000 lbs allowing for maximum flexibility when working a number of varying types of wells. We have a number of options to fit each piece of equipment to your individual application.

    Click here for a CASINJAC MODEL 500 13 3/8" PDF

    Click here for a CASINJAC MODEL 500 16" PDF

    Click here for a CASINJAC MODEL 500 30" PDF

    Click here for a CASINJAC MODEL 500 36" PDF
